EasyBreez is Super easy to Install, Your Local Technician can Easily Install EasyBreez in just 10 mins

Step 1: Remove fan from the ceiling Shaft

Step 2: Fix EasyBreez on fan shaft at the same position of existing slot Use the same screw hole on fan shaft to fix EasyBreez product. Insert capacitor in holder provided on EasyBreez Plastic.

Step 3: Follow the below diagram for wiring EasyBreez.

Step 4: Use cable crimping lugs to input and output cables for better and safe installations avoiding loose contacts and short circuits,

Input Wiring (Mains from Switch Board):

P – Live

N – Neutral

Output Wiring (to Fan Motor):

R – Red wire

Y – Yellow wire + Capacitor

B – Blue / Black wire + Capacitor

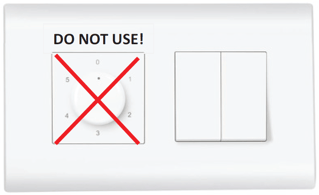

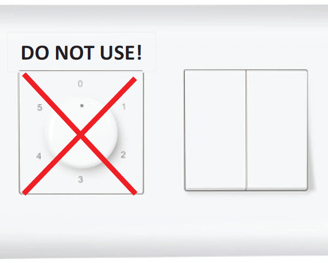

Step 5:Bypassing the manual regulator in switch board

Warranty Void if any failure arises due to usage of manual regulator along with EasyBreez
